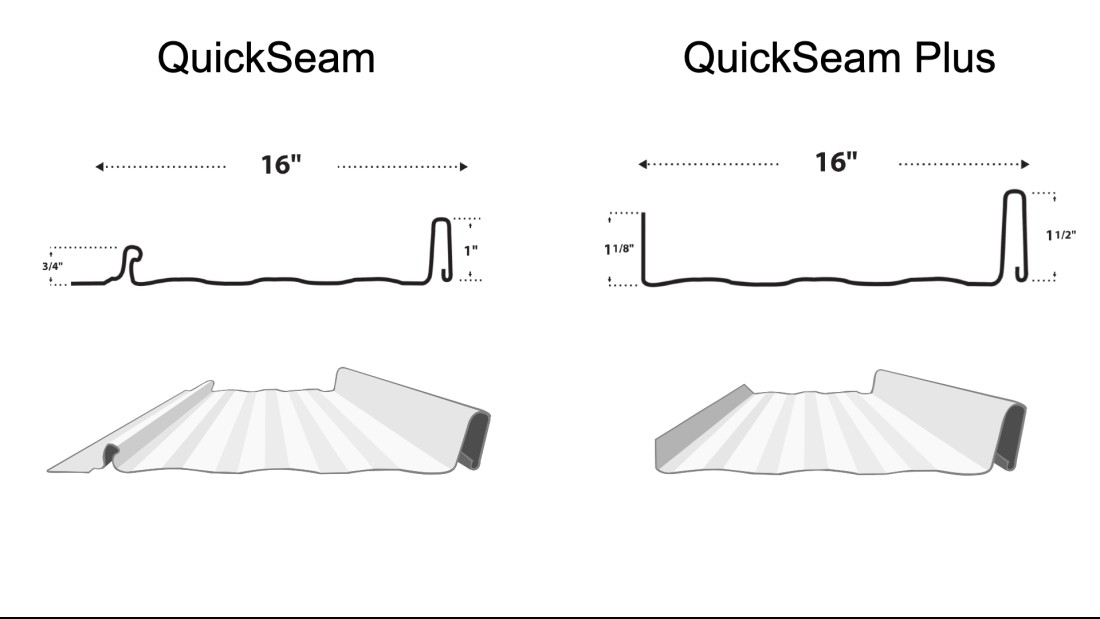

Quickseam & Quickseam Plus

infographic for quick seam system



Quickseam and Quickseam Plus Roofing
in Ohio, Kentucky, and Illinois


You have discovered the most effective, elegant seam roof panels on the market.

Popular in upscale residential and architectural roofing applications, Standing Seam roofs are manufactured to be durable and attractive. They have the highest wind, fire, and impact resistance of any other roofing option. Both are snap-locking, concealed fastened products that offer 16” coverage. The difference between the two is subtle, but these panels are anything but.

Specs:

Coverage: Available in a 1-1/2” rib height with a 16” coverage width. Can be installed horizontally or vertically.

Slope: Minimum recommended roof slope is 3:12.

Length: Minimum cut length is 1’-0.” Maximum recommended cut length is 53’-0.” Longer panels need special consideration for erection, packaging, and shipping.

Fasteners: Quickseam & Quickseam Plus are concealed fastened, snap-locking products. Contact your representative for assistance in choosing the proper fastener for your project.
NOTE: All panels are subject to surface distortion when fasteners are improperly applied. Fasteners that are overdriven will cause stress across the face of the panel at or near the point of fastening. *Contact your representative for assistance in choosing the proper fastener for your project.

Gauge: Available in 26 and 24 gauge in both Galvalume and Sherwin-Williams colors.

Substructure: Designed for use over a solid substrate. Uniform and properly aligned substructures are necessary to avoid panel distortion.

Warranties: 40-year Sherwin-Williams limited warranty, 25-year Galvalume warranty.
