Corrugated

Corrugated Metal Roofing Panels
that provide a Classic Look Anywhere


The versatility of these corrugated metal panels makes them a preferred choice for roofing projects.

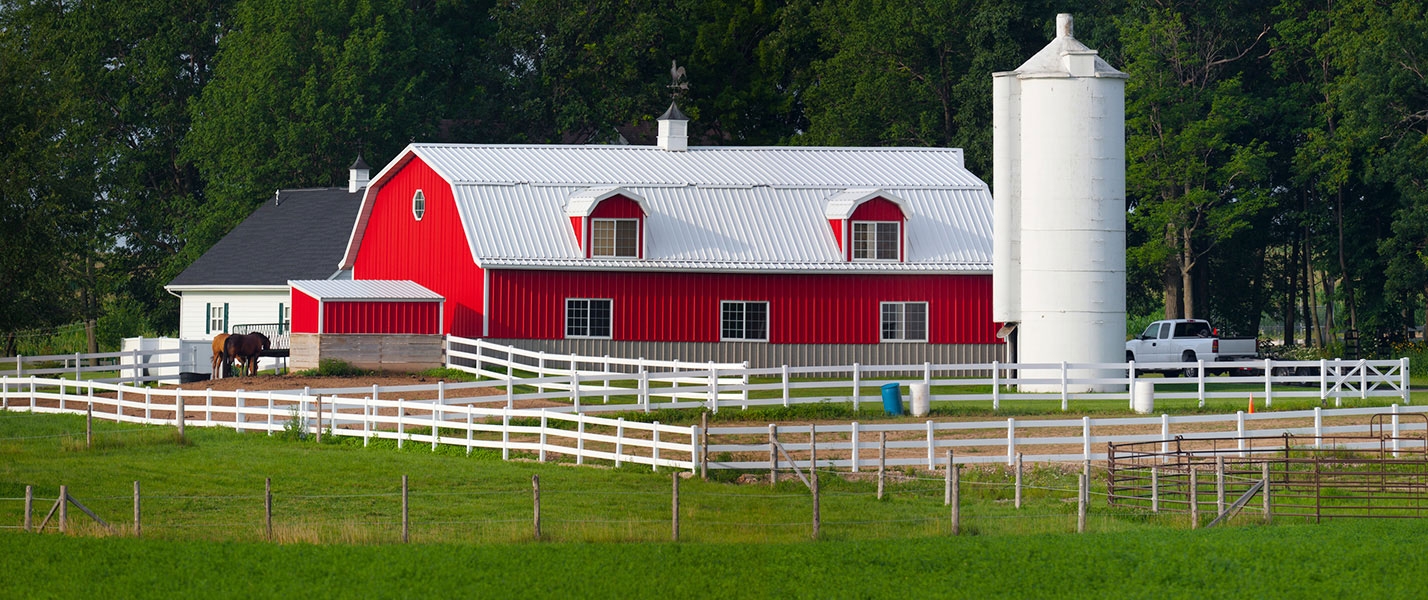

As the most recognized type of metal roofing and siding, our Corrugated metal roofing panels are popular for agricultural and DIY projects but are great for any project. Built for durability and value, Corrugated panels are arguably the most versatile metal panel. Corrugated metal roofing is an exposed fastened product offering 24" coverage. Available in a Galvalume substrate, our Corrugated panels carry a 25-year warranty that guarantees beauty for decades.

Specs:

Coverage: Available in a 1/4” rib height with a 24” coverage and 1-1/4" corrugated widths.

Slope: Minimum recommended roof slope is 3:12.

Length: Minimum cut length is 1’-0”. Maximum is 30’-0”. Longer panels need special consideration for erection, packaging, and shipping.

Fasteners: Exposed fastened product.
NOTE: All panels are subject to surface distortion when fasteners are improperly applied. Fasteners that are over-driven will cause stress across the face of the panel at or near the point of fastening. *Contact your representative for assistance in choosing the proper fastener for your project.

Gauge: Available in 29 and 26 gauge Galvalume

Substructure: Designed for use over a solid substrate or open structural framing at 24” O.C. uniform and properly aligned substructures are necessary to avoid panel distortion.

Warranties: 25-year Galvalume warranty.
